Mast and Mounting
Accessories

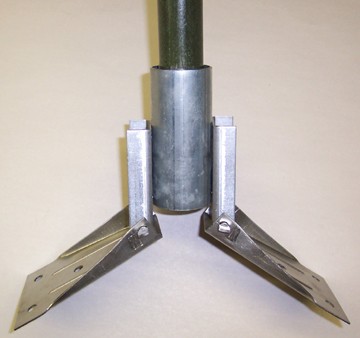

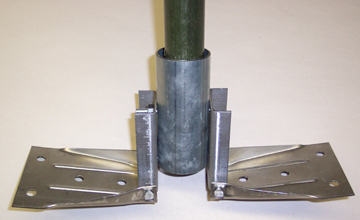

MK112-RM Roof Mount

The MK112-RM allows easy attachment of the MK112 mast poles to the top of a roof.  Its hinged feet conform to a flat, pitched, or peaked application.  Simply bolt or lag it down.  The center pivots allowing build-up of the mast 'down', and then pivot it up with the guy lines.  This item is included with the MK112 roof (R) masts.

Fabricated from rugged glass polymer material, these are ideal insulators for both receiving antennas and for transmitting up to the legal limit.  They will survive a pull of over 1000 Lbs, and are an excellent electrical insulator.  Size 1-1/4" dia x 4" long.  Holes are 0.270" dia.  Weight 3 ozs.

Model AI-5 End Insulators

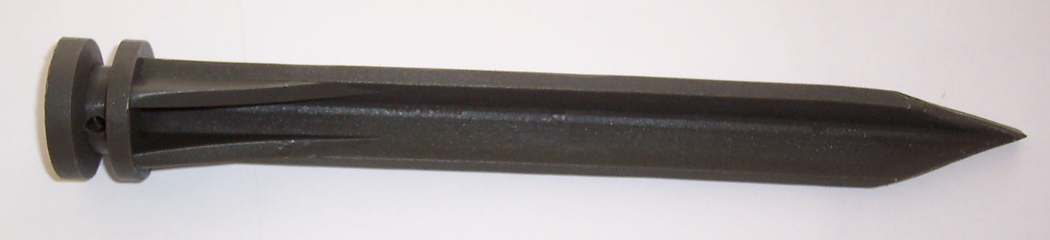

Model GS-2 Ground Stakes

Light weight, high strength stake for big jobs.  Made from thermoplastic, this item is very strong.  You drive it with a hammer just like it was metal.  Obviously, there are no corrosion problems for very long life.  The head allows 'hooking' a line over it, or you may pass line through  holes in it.  Color is O.D. green, 12 inches long.


Model GS-3 Ground Stakes

Made from heavy 1/8" thick aluminum, this is part of many military nomenclatured items. The head allows 'hooking' a line over both sides,  and it has a hole for tying an extraction line.  Color is O.D. green, 12 inches long.    NSN 1080-00-108-1654.

High Quality Polyester Rope

The best rope for antenna installations.  Polyester will not stretch, rot, or be affected by the UV from the sun.  Easy to cut, tie or splice.  Available in white diamond braid, and sand or olive (O.D.) solid braid.   3/16 has 770 lbs break strength, 5/32 has 550 lbs.
PART NUMBER DESCRIPTION COLOR LENGTH
RP532G 5/32 SOLID BRAID GREEN 100 FT
RP532S 5/32 SOLID BRAID SAND 100 FT
RP316G 3/16 SOLID BRAID GREEN 100 FT
RP316W 3/16 DIAMOND BRAID WHITE 100 FT
