Folded Dipole
Center Mounts
Model FDMK Folded Dipole
Center Mounting Kit

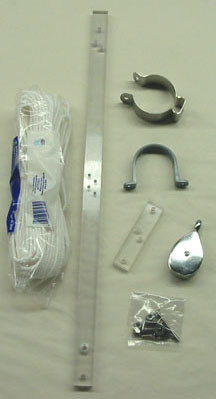

Kit of Parts
Kit attached to rolled up folded dipole
The FDMK mounting kit allows easy permanent or pulley mounting of our line of folded dipole antennas to your center support system. This kit consists of a support system and ancillary items to mount the antennas in a three support installation. This includes horizontal (flat-top) or inverted Vee. The mount is versatile, allowing attachment to poles, masts, trees, towers, or free hanging from a rope. This kit is NOT required for two pole horizontal or two pole sloper installations.
All materials are manufactured for a long outdoor life, with use of UV stabilized thermoplastics, and stainless steel hardware. The kit includes a thermoplastic support system, clamps for the balun and balancing network, a weather resistant swivel eye pulley, 100 feet of rope, and hardware. The rope supplied is 3/16 polyester diamond braid, which will not stretch, rot, or degrade under UV.
Model MK114-CM Folded Dipole
Center Mounting Kit
Very similar to the FDMK at the top of this page, the MK114-CM mounting kit allows easy pulley mounting of our line of folded dipole antennas to our MK114 series masts. This kit consists of a support system and ancillary items to mount the antennas to the middle mast. Specify green or sand color for the end ropes.
All materials are manufactured for a long outdoor life, with use of UV stabilized thermoplastics, and stainless steel hardware. The kit includes a thermoplastic support system, clamps for the balun and balancing network, and hardware.
This item is included with the BWDI antenna.
Model MK112-CM Folded Dipole
Center Mounting Kit
Very similar to the FDMK at the top of this page, the MK112-CM mounting kit allows easy permanent or pulley mounting of our line of folded dipole antennas to our MK112 series masts. This kit consists of a support system and ancillary items to mount the antennas to the middle mast. Available in green color only for the end ropes.
All materials are manufactured for a long outdoor life, with use of UV stabilized thermoplastics, and stainless steel hardware. The kit includes a thermoplastic support system, clamps for the balun and balancing network, and hardware. Clamps for hard affixing the antenna to the center mast for wind survivability are included.
